I D Card Printer


ID Card Printer

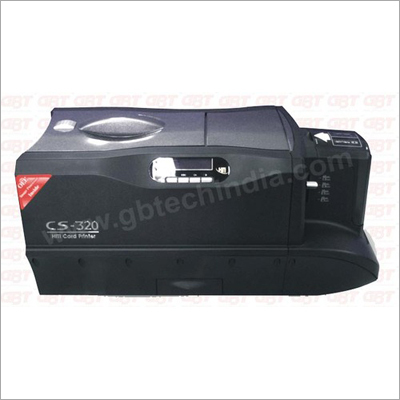

GBT Thermal Card Printer CS320 is double side PVC card printer, at the present time, it is the cheapest original Double Sided pvc card printer with perfect printing impression in the world.

Features:
With one year quality guarantee and the customer can change TPH once for free in the first year.

1) Print Method: Double side Printing
2) Print Speed: Premium photo mode: 32 sec. (per YMCKO)
Standard mode(Default): 25 sec. (per YMCKO)
3) Resolution: 300dpi x 300dpi, 256 levels per color
4) Dimensions & Weight: 275mm(W)/508mm(L)/251mm(H); 9.1kg
5) Display: LCD screen(Multi-language), LED
6) Memory: 32MB, 1MB Flash
7) Software driver: Windows 2000/XP/2003; Mac driver
8) Communication Interface: USB 1.1/USB 2.0 full speed
9) Print Area: CR-80 86mm(L) x 54mm(W)
10) Accepted card Specification: 0.3mm/0.5mm/0.8mm/1mm
11) Input hopper card capacity: 100 cards(0.76mm/30mil thickness)
12) Output hopper card capacity: 100 cards(0.76mm/30mil thickness)
13) Ribbon Options: YMCKO(200 prints), Resin K(1, 000 prints)
14) Supply Voltage: 110~240VAC
15) Supply Frequency: 50HZ~60HZ
16) Operating Temperature: 15 C to 32 C /59 C to 89.6 F
17) Operating Humidity: 20~75% non-condensing
18) Encoding Options:

  • A. Mag card encoder 300 Oe~4000 Oe Tracks 1, 2, and 3
  • B. Contact IC encoder(embedded)
  • C. Contactless IC encoder(Mifare type A; Other types upon request)

19) Lamination model: Could be upgraded on site()
20) Cleaning tool: HiTi Card Printer PAVO clean kit
