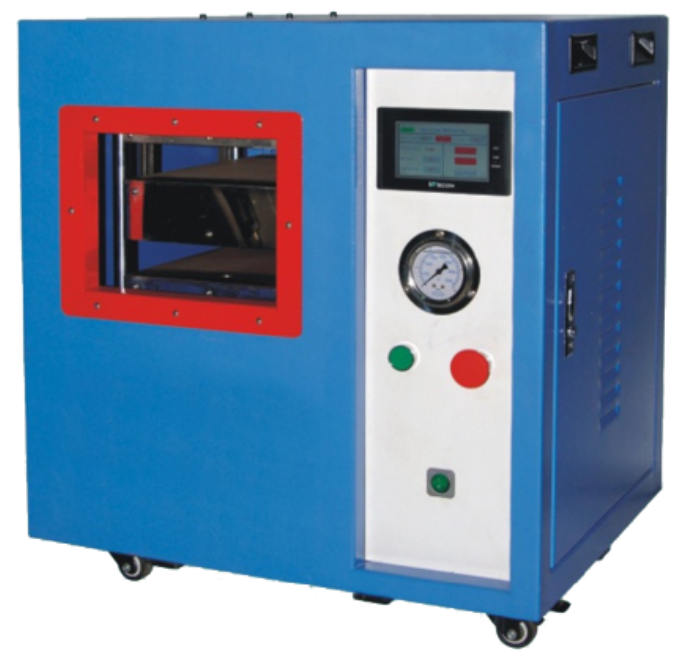

A-4 Hydraulic Fusing Machine 100 Cards ( Double Chamber)

185000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Other
Technology Other
Power Source Hydraulic
Operating Type Semi Automatic
Power 220V / 50/ 60HZ Volt (v)
Dimension (L*W*H) 630x490x640mm Millimeter (mm)
Weight (kg) 150 kg Kilograms (kg)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

A-4 Hydraulic Fusing Machine 100 Cards ( Double Chamber) Price And Quantity

Minimum Order Quantity 1 Piece
Price 185000 INR/Piece

A-4 Hydraulic Fusing Machine 100 Cards ( Double Chamber) Product Specifications

Technology Other
Power 220V / 50/ 60HZ Volt (v)
Usage & Applications Fusing Machine
Weight (kg) 150 kg Kilograms (kg)
Dimension (L*W*H) 630x490x640mm Millimeter (mm)
Warranty No Warranty
Operating Type Semi Automatic
Power Source Hydraulic
Product Type Other

A-4 Hydraulic Fusing Machine 100 Cards ( Double Chamber) Trade Information

Payment Terms Telegraphic Transfer (T/T) Cash in Advance (CID) Cheque Cash Advance (CA)
Delivery Time 10 Days
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

A-4 Hydraulic Fusing Machine 100 Cards ( Double Chamber)

Product Details:

Minimum Order Quantity	1 Piece
Cooling Method	Water cooling (water in / water out)
Usage/Application	Hydraulic Fusing Machine
Power Consumption	50/60HZ
Automation Grade	Semi-Automatic
Voltage	220V
Driven Type	Electric
Pressure Adjustable	0-160 bar (0-2300 psi), 2 Step Pressure
Model Name/Number	Hydraulic Fusing Machine HFM-A4
Warranty	NA
Brand	GBT
Size	210x197mm
Weight	150Kgs Approx.
Speed	Output up to 100 cards /hrs
Pressure Method	oil Hydraulic Pressure System
Loading	1 Opening of heating , 1 Opening of Cooling
Heating Method	Heating Element (Heating Tubes) PID
Format	210x197mm
Dimension	630x490x640mm Approx.

A-4 Hydraulic Fusing Machine with 2 holding tray

Specification:

ISO CR-80 Templates : A 10 -up Layout for Standard ISO Cards on sheet
Speed : Output up to 100 Cards / cycle (ISO CR-80 Cards)
Loading : 1 Openings of heating , 1 openings of cooling
Controlling Method : PID
Pressure Method : Oil Hydraulic pressure system
Pressure Range : 0-160 bar (0-2300 psi), 2 Step Pressure
Heating Method : Heating Element (Heating Tubes ) - PID
Cooling Method : Water Cooling(Water in/water out)

+18% TAX EXTRA ON MACHINE
